Stainless steel horizontal magnetic drive pump

Stainless steel horizontal magnetic drive pump

Stainless steel magnetic pumps feature a seal-less magnetic drive design that achieves 0% external leakage, with stainless steel wetted parts capable of handling pressures up to 25 bar and temperatures up to 250°C. They deliver stable flow rates up to 200 m³/h, low NPSH of ~2–3 m, and are ideal for continuous chemical and solvent transfer with minimal maintenance.

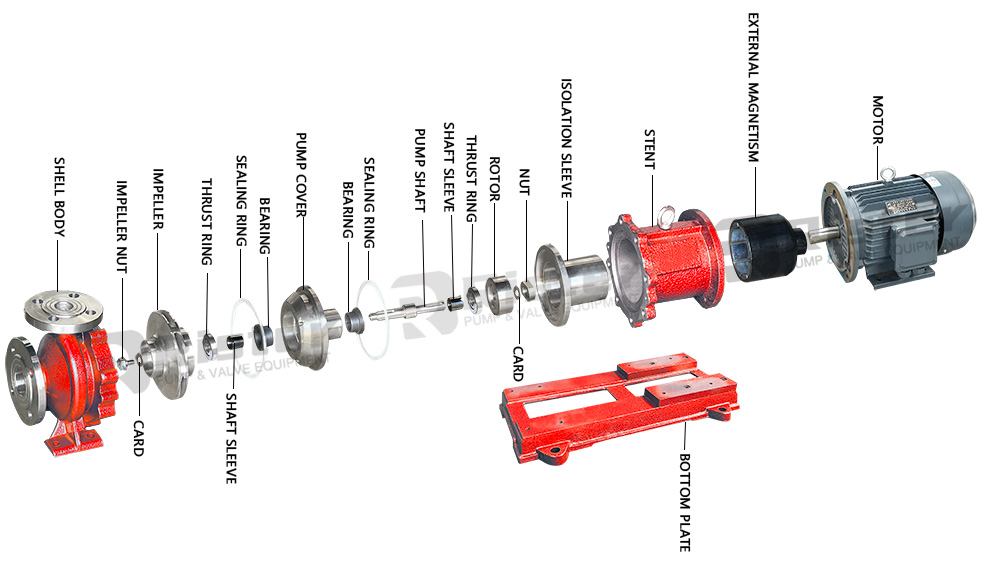

Main Structural Features

• Rare earth magnets will not be demagnetized at high temperatures.
• Fully sealed design, no leakage.
• Can transport a variety of organic solvents and lye, safe and reliable.

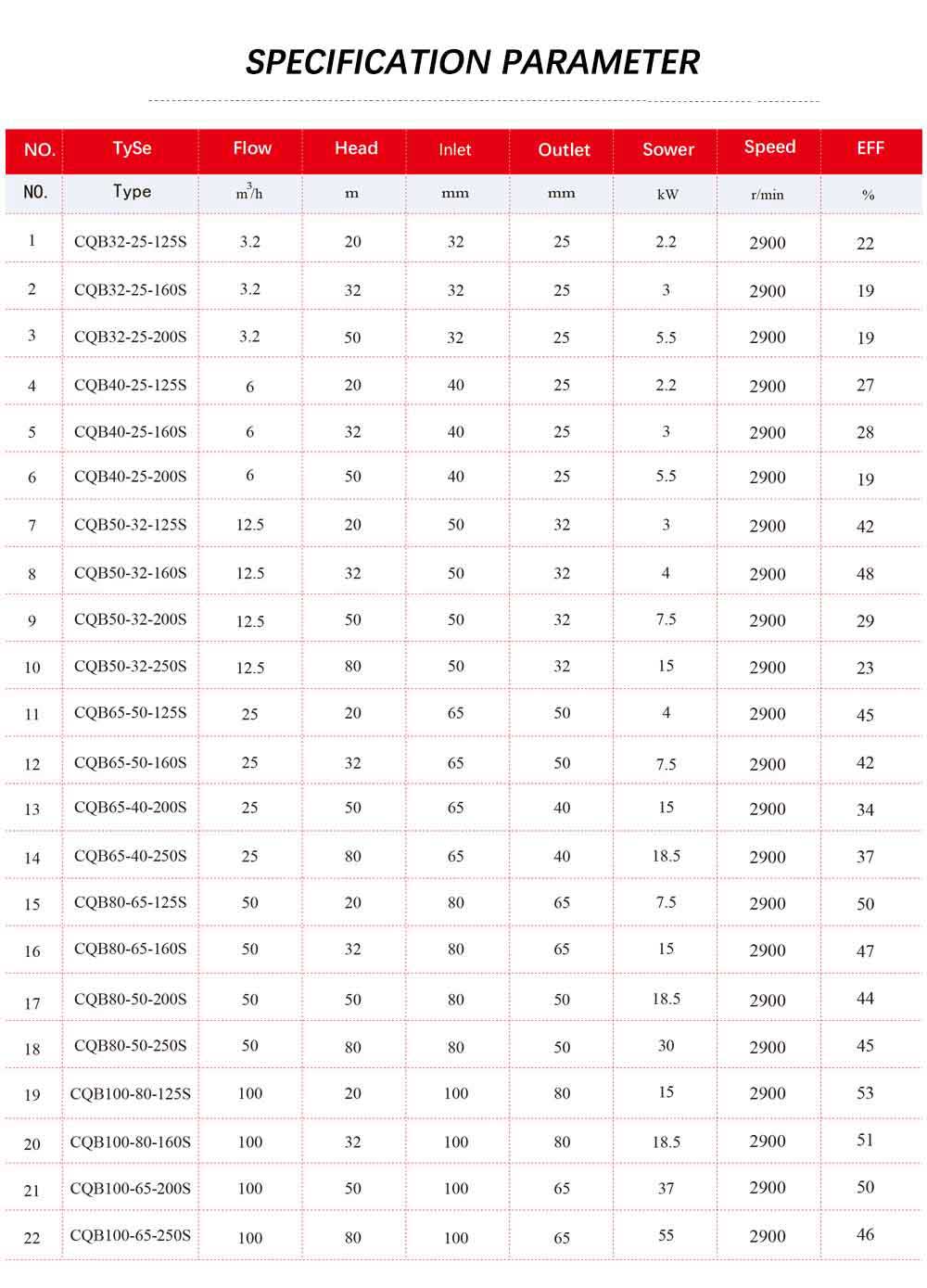

 Specifications

• Design:Sealed non-leakage design.
• Wetting material:SUS316L,SUS304,SS2205
• Nominal Pressure:PN16/PN25
• Flange:DIN standard or ASME B16.5 class 150/JIS 10K, convex flange.
• Temperature range:-20℃ to 250℃
• Certificate:ISO9001 certification, CE certification,ATEX Explosion-proof certification.

FAQ for Stainless steel horizontal magnetic drive pump:

Q: What industries commonly use stainless steel magnetic drive pumps?

A: They are commonly applied in chemical processing, pharmaceutical manufacturing, petrochemical plants, and energy industries, where magnetic drive pumps are required for safe handling of high-temperature and high-pressure process fluids.

Q: What materials are commonly used in stainless steel magnetic pumps?

A: Stainless steel magnetic pumps typically use SS304 or SS316 for wetted parts, providing excellent corrosion resistance and mechanical strength for industrial chemical pump applications.
