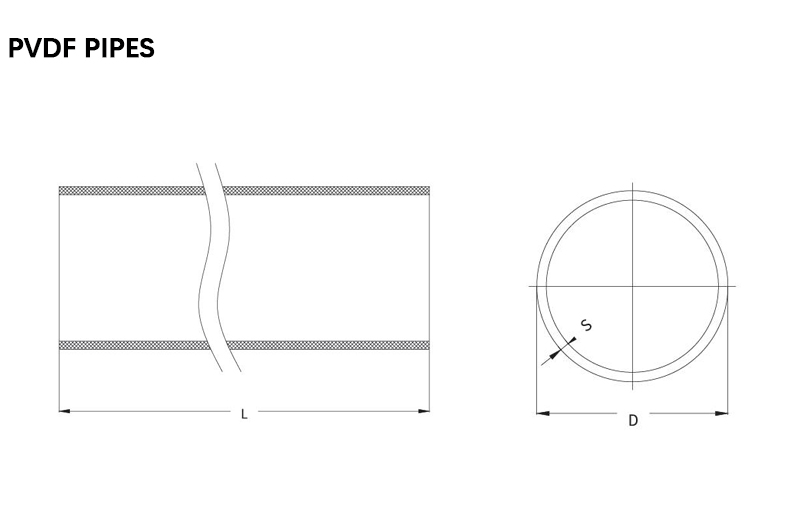

Corrosion-resistant PVDF straight pipe

Corrosion-resistant PVDF straight pipe

PVDF straight pipes provide corrosion resistance, high purity, and long service life, making them ideal for chemical and industrial fluid systems.

 Main Structural Features

• High-Purity Material:Made from PVDF resin with >99% chemical purity, suitable for aggressive fluids.

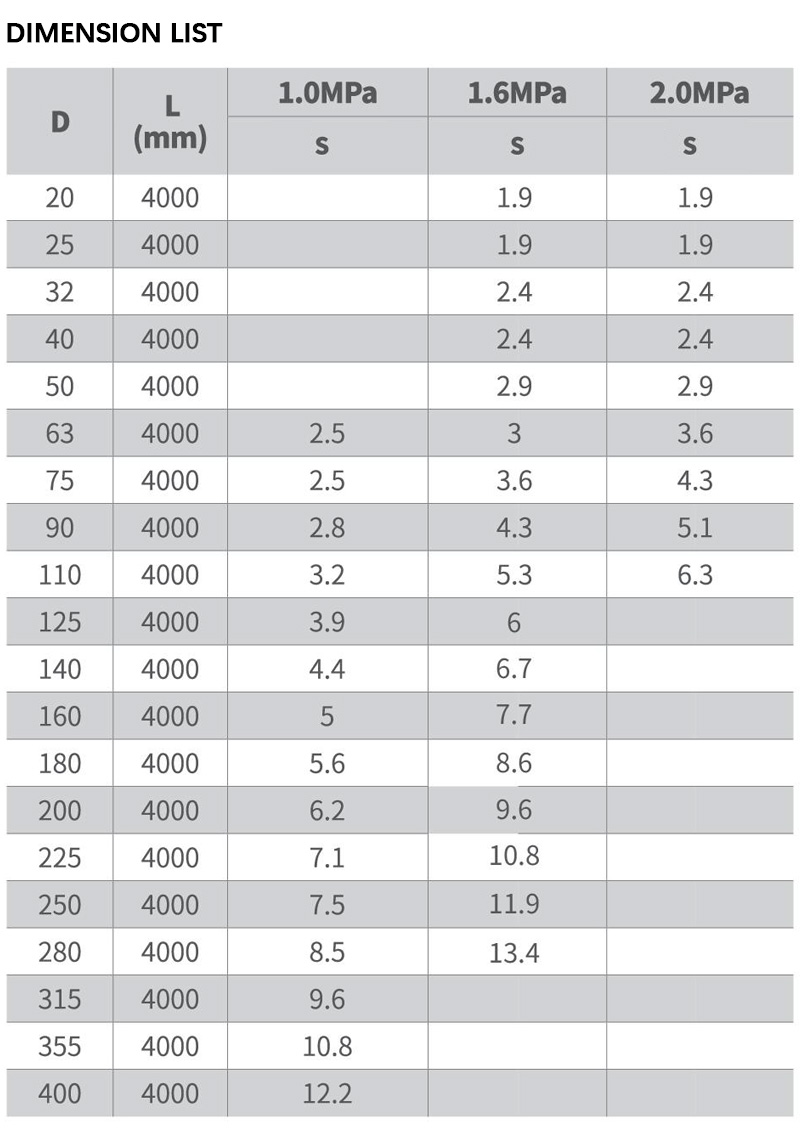

• Uniform Wall Thickness:Standard PN10/PN16 ratings provide pressure resistance up to 16 bar.
• Smooth Inner Surface:Roughness < 0.01 mm, reducing flow friction and scaling.
• Temperature & UV Resistance:Operates reliably from -40°C to 140°C while resisting UV degradation.

Industrial Applications

• Chemical Processing – Transport of acids, alkalis, and corrosive solvents.
• Water & Wastewater Treatment – Piping for dosing, filtration, and chemical injection.
• Pharmaceutical & Food Industries – Safe handling of high-purity liquids.
• Semiconductor & Electronics – Delivery of ultrapure chemicals in sensitive processes.
• Environmental Engineering – Corrosion-resistant piping for flue gas scrubbing and industrial effluent systems.

 FAQ for PVDF straight pipe:

Q: Why are PVDF pipes used in chemical industries?
A: PVDF pipes offer excellent corrosion resistance and chemical compatibility, making them ideal for transporting acids, alkalis, and aggressive solvents.

Q: What temperature and pressure can PVDF pipes handle?
A: PVDF pipes can safely operate from -40°C to 140°C and withstand pressures up to 16 bar, depending on pipe specification.
